X-Band Long-Range Phased Array Radar
This product has a detection range of ≥10 km and is listed under China's Dual-Use Items and Technologies Export Control List. Export requires a valid MOFCOM export licence. The buyer must submit an End-User Certificate (EUC), End-Use Certificate, and a Non-Re-export Declaration. Transactions are subject to dual supervision by China Customs and the Ministry of Commerce. Violation of export control regulations may result in criminal liability under Chinese law.
The XR-RD11 series X-band long-range phased array radar employs a fully solid-state, fully coherent, pulse-Doppler architecture for all-weather detection and early warning of "Low-Small-Slow" targets. AI classification based on micro-Doppler and track features enables effective detection and classification of UAVs, light aircraft, helicopters, and other targets at extremely low false-alarm rates. Expandable to mechanical + phase-scan and multi-panel configurations.
Model Variants
Variant Specifications

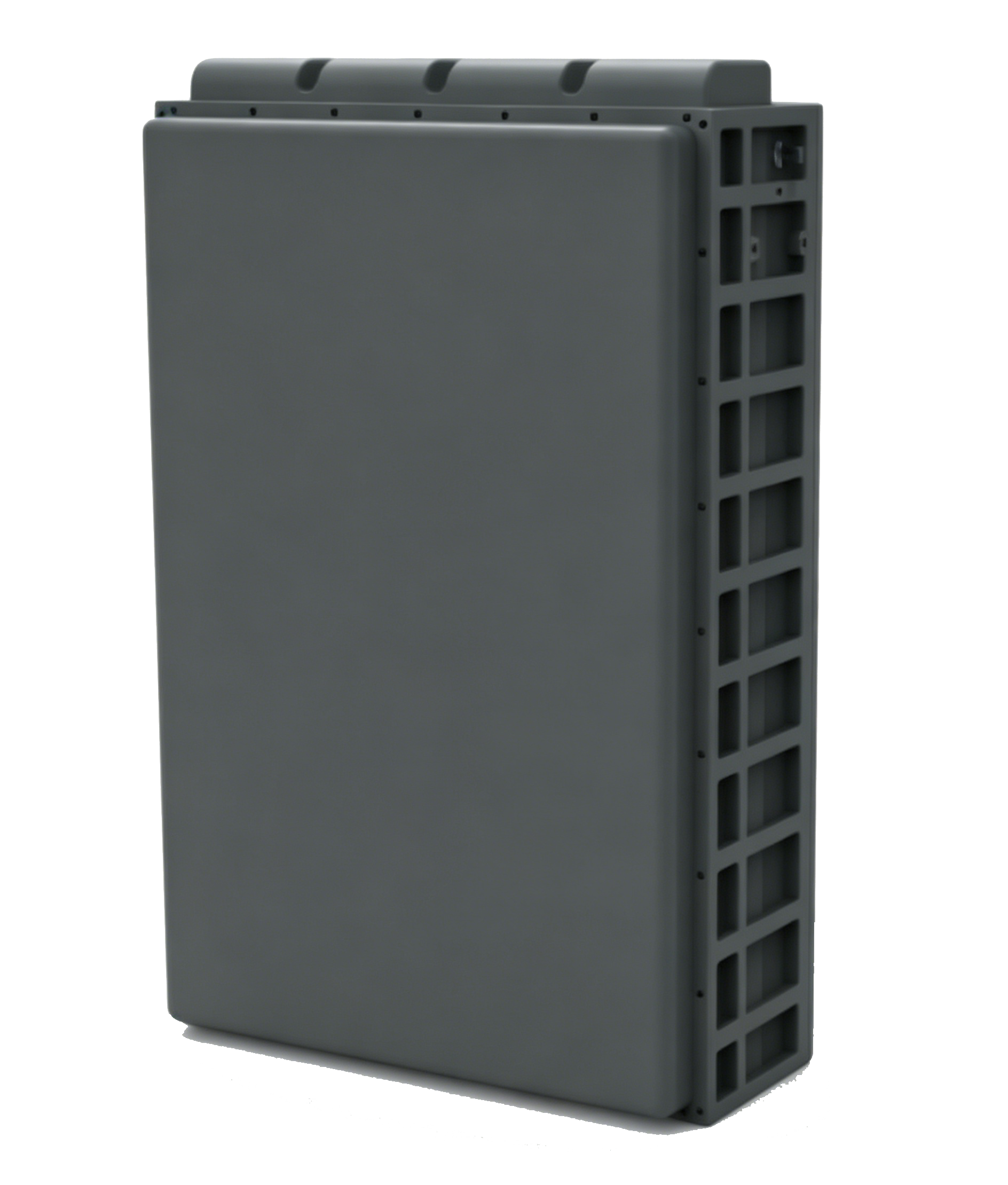

| Products | XR-RD11A |
|---|---|
| Operating Mode | 2D Phased Array |
| Search Coverage | Azimuth: ±45°, Elevation: 0°~60° (configurable) |
| Target Update Rate | TWS: ≤3.5s (30° elevation), TAS: ≤0.5s (default) |
| Weight | ≤25kg (single panel) |
| Power Consumption | ≤1200W |
| Dimensions | ≤510mm×340mm×135mm |
Variant Specifications

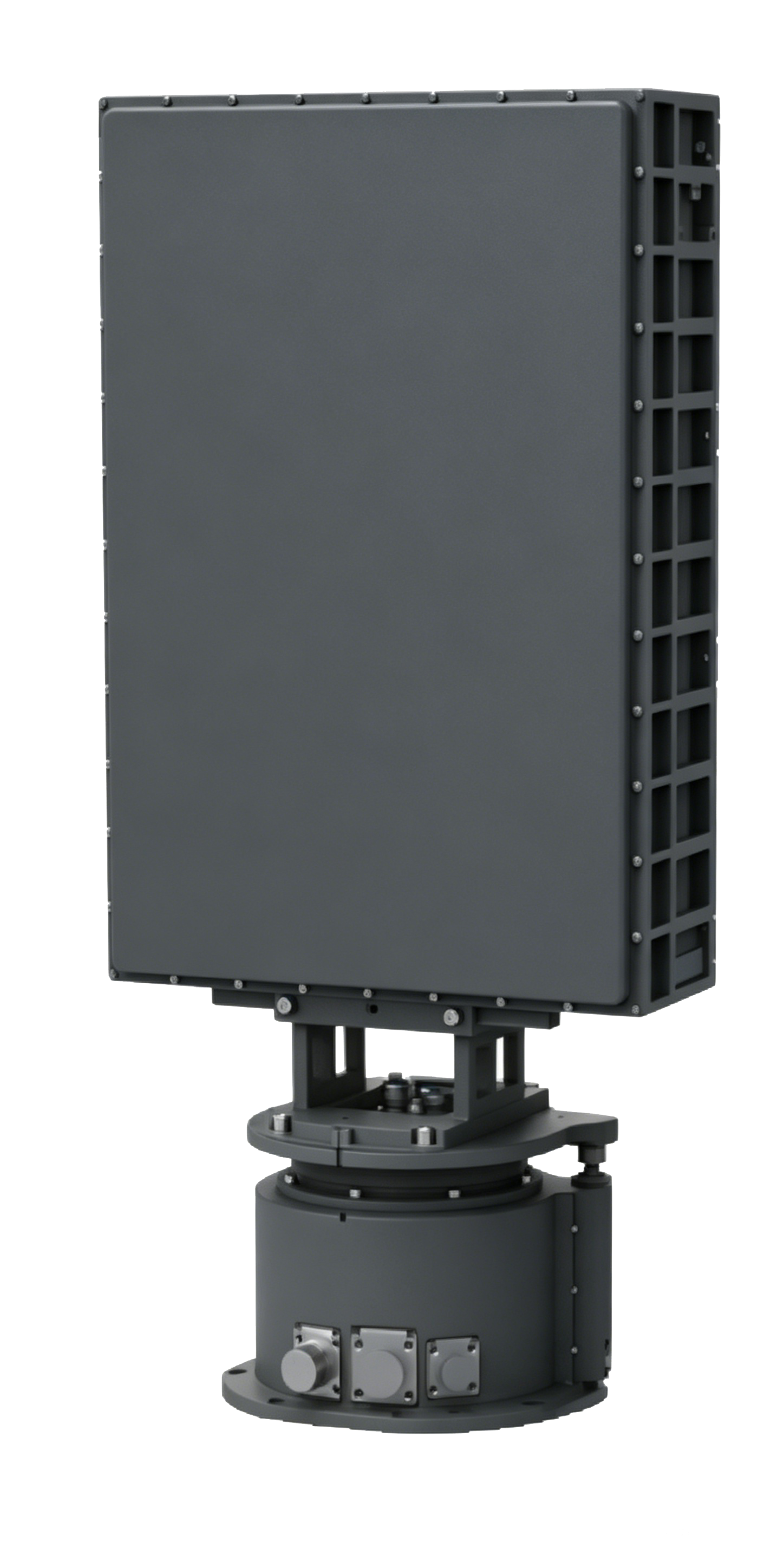

| Products | XR-RD11B |
|---|---|
| Operating Mode | Mechanical + 2D Phase Scan |
| Search Coverage | Mech: Azimuth 0°~360°, Elev 0°~60°; Phase: Azimuth -45°~45°, Elev 0°~60° |
| Target Update Rate | Mech: ≤4s (30° elev. coverage), Phase: ≤3.5s (30° elev. coverage) |
| Weight | ≤38kg (excl. PSU & tripod) |
| Power Consumption | ≤1300W |
| Dimensions | ≤785mm×340mm×220mm |
Variant Specifications

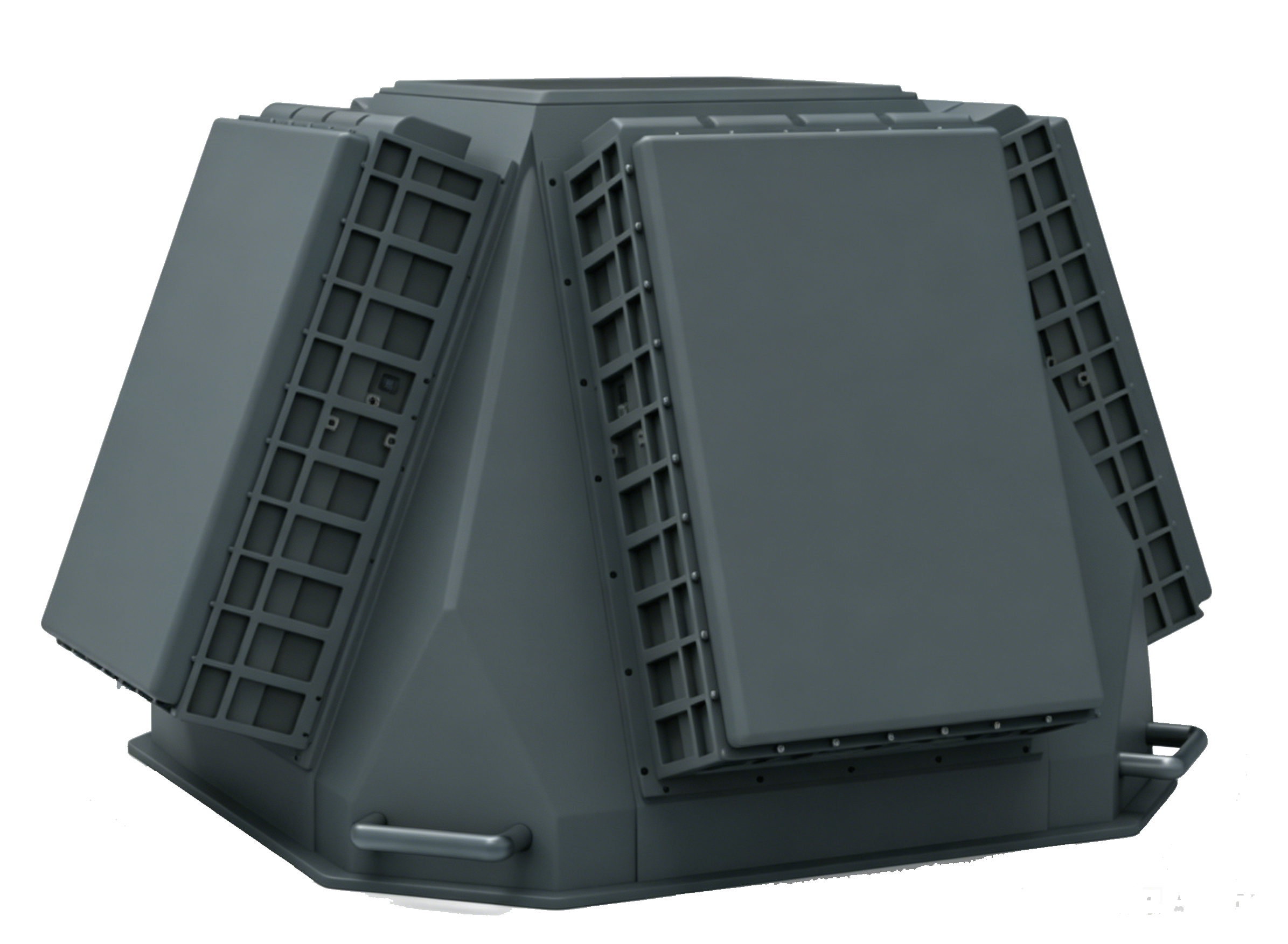

| Products | XR-RD11C |
|---|---|
| Operating Mode | 2D Phased Array |
| Search Coverage | Azimuth: 0°~360°, Elevation: 0°~60° (configurable) |
| Target Update Rate | TWS: ≤3.5s (30° elevation), TAS: ≤0.5s (default) |
| Weight | ≤125kg (excl. PSU & tripod) |
| Power Consumption | ≤5500W |
| Dimensions | ≤1100mm×1100mm×750mm |
