CR-RD08 Series — X-Band Long-Range Phased Array Radar
8 km-class X-band radar for airport approaches, coastlines, oil and gas sites, border corridors, and wide-area public security missions.
Because this product has long-range target detection, low-altitude surveillance, and multi-target tracking capabilities, it is subject to China’s dual-use item export control requirements. For products subject to control code 6A108.a (radar equipment), we will complete the required compliance review and any necessary export licensing procedures in accordance with the law before export.
The buyer must cooperate by providing end-user, end-use, non-re-export/non-transfer undertakings, and other necessary documentation. We supply only to lawful, transparent end users that have passed compliance review.
- Ministry of Commerce Announcement 2024 No. 51: Export Control List of Dual-Use Items of the People’s Republic of China
- 2026 Catalogue for the Administration of Import and Export Licenses for Dual-Use Items and Technologies (Ministry of Commerce and General Administration of Customs Announcement 2025 No. 91)
- Reference control code: 6A108.a — radar equipment
The CR-RD08 series X-band long-range phased array radar employs a fully solid-state, fully coherent, pulse-Doppler architecture for all-weather detection and early warning of "Low-Small-Slow" targets. AI classification based on micro-Doppler and track features enables effective detection and classification of UAVs, light aircraft, helicopters, and other targets at extremely low false-alarm rates. Expandable to mechanical + phase-scan and multi-panel configurations.
Model Variants
Variant Specifications

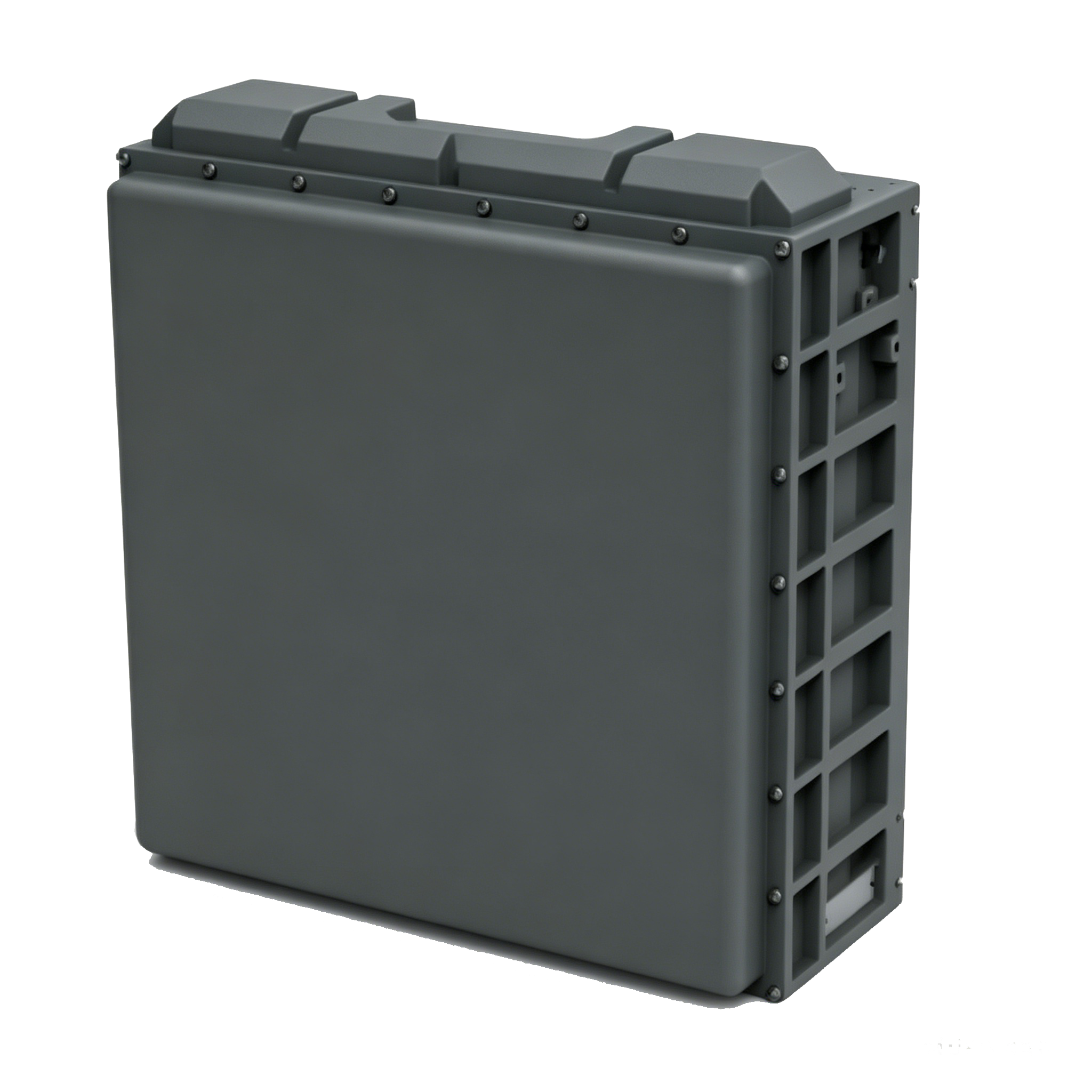

| Parameter | CR-RD08A |
|---|---|
| Operating Mode | 2D Phased Array |
| Search Coverage | Azimuth: ±45°, Elevation: 0°~80° (configurable) |
| Target Update Rate | TWS: ≤3.6s (30° elevation), TAS: ≤0.5s (default) |
| Weight | ≤15kg (single panel) |
| Power Consumption | ≤600W |
| Dimensions | ≤337mm×317mm×145mm |
Variant Specifications
| Parameter | CR-RD08B |
|---|---|
| Operating Mode | Mechanical + 2D Phase Scan |
| Search Coverage | Mech: Azimuth 0°~360°, Elev 0°~80°; Phase: Azimuth -45°~45°, Elev 0°~80° |
| Target Update Rate | Mech: ≤3.8s (30° elevation), Phase: ≤3.6s |
| Weight | ≤30kg (excl. PSU & tripod) |
| Power Consumption | ≤600W |
| Dimensions | ≤570mm×317mm×220mm |
Variant Specifications
| Parameter | CR-RD08C |
|---|---|
| Operating Mode | 2D Phased Array |
| Search Coverage | Azimuth: 0°~360°, Elevation: 0°~80° (configurable) |
| Target Update Rate | TWS: ≤3.6s (30° elevation), TAS: ≤0.5s (default) |
| Weight | ≤90kg (excl. PSU & tripod) |
| Power Consumption | ≤2500W |
| Dimensions | ≤950mm×950mm×450mm |
