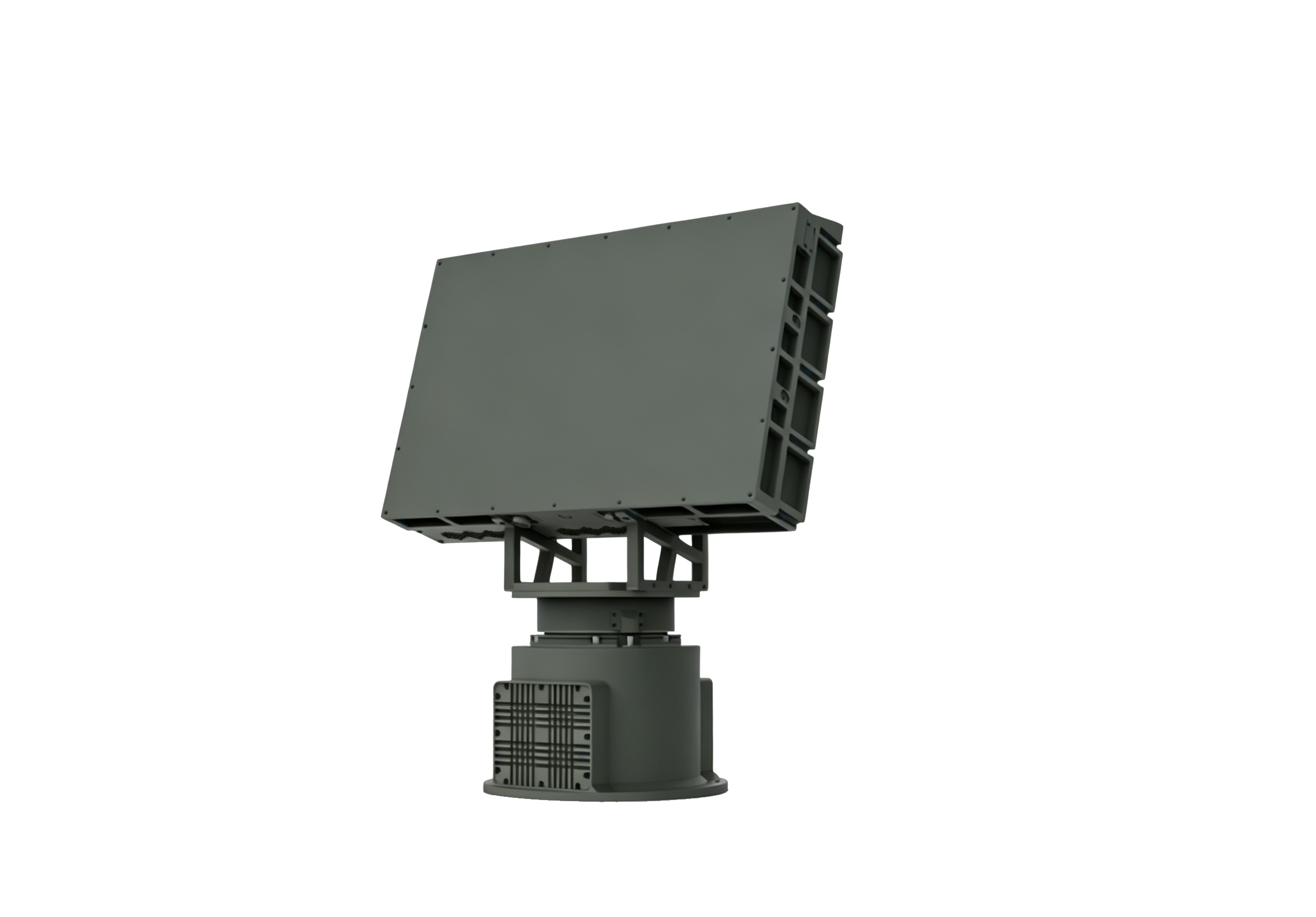

CR-RD09 — Ku-Band DBF Radar
Ku-band DBF radar for demanding low-altitude tracking, combining mechanical azimuth scan with digital elevation beamforming for faster update behavior.
Because this product has long-range target detection, low-altitude surveillance, and multi-target tracking capabilities, it is subject to China’s dual-use item export control requirements. For products subject to control code 6A108.a (radar equipment), we will complete the required compliance review and any necessary export licensing procedures in accordance with the law before export.
The buyer must cooperate by providing end-user, end-use, non-re-export/non-transfer undertakings, and other necessary documentation. We supply only to lawful, transparent end users that have passed compliance review.
- Ministry of Commerce Announcement 2024 No. 51: Export Control List of Dual-Use Items of the People’s Republic of China
- 2026 Catalogue for the Administration of Import and Export Licenses for Dual-Use Items and Technologies (Ministry of Commerce and General Administration of Customs Announcement 2025 No. 91)
- Reference control code: 6A108.a — radar equipment
The CR-RD09 Ku-band DBF radar employs a fully solid-state, fully coherent, pulse-Doppler architecture for all-weather detection and tracking of rapidly manoeuvring "Low-Small-Slow" targets. Using azimuth mechanical scan combined with elevation Digital Beamforming (DBF), the CR-RD09 achieves a faster target update rate compared to 2D phased array and conventional mechanically-scanned radars.
Variant Specifications
| Parameter | Value |
|---|---|
| Frequency Band | Ku Band |
| Detection Range | ≥10km (RCS: 0.01m²) |
| Blind Zone | ≤200m |
| Operating Mode | Azimuth: Mechanical, Elevation: DBF |
| Search Coverage | Mech: Azimuth 0°~360°, Elev 0°~50°; Phase: Azimuth -45°~45°, Elev 0°~50° |
| Target Update Rate | ≤2s |
| Resolution | Range: ≤15m, Azimuth: ≤6°, Elevation: ≤4° |
| Search Accuracy (RMS) | Range: ≤10m, Azimuth: ≤0.4°, Elevation: ≤0.4° |
| Interface | RJ45 Ethernet |
| Target Capacity | ≥200 tracks |
| Weight | ≤80kg (excl. PSU & tripod) |
| Power Supply | AC220V / DC28V |
| Power Consumption | ≤2000W |
| Dimensions | ≤840mm×690mm×360mm |
| Protection Rating | IP66 |
